How to Install Replacement Potentiometers.


Warning : Disassembling your pedals will void any warrant with Logitech™, this guide is provided for informational purposes only.

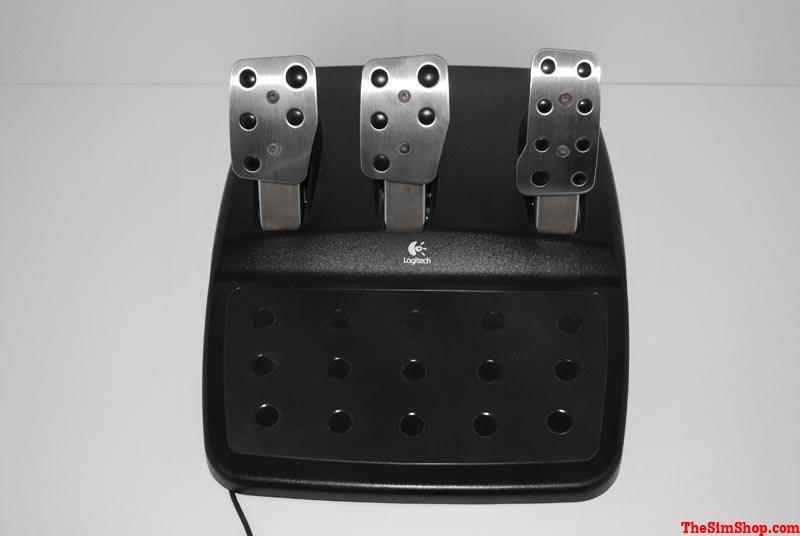

Step 1 : Unplug your pedals

Click to Enlarge
Unplug your pedals

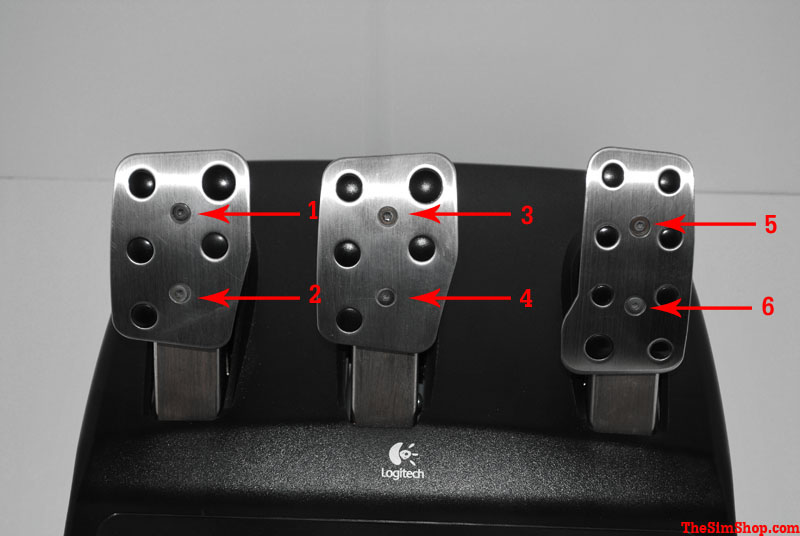

Step 2 : Remove the pedal faces; use a 2.5mm allen key ( hex socket ) to remove all 3 of the pedal faces.

Click to Enlarge
Remove the pedal faces

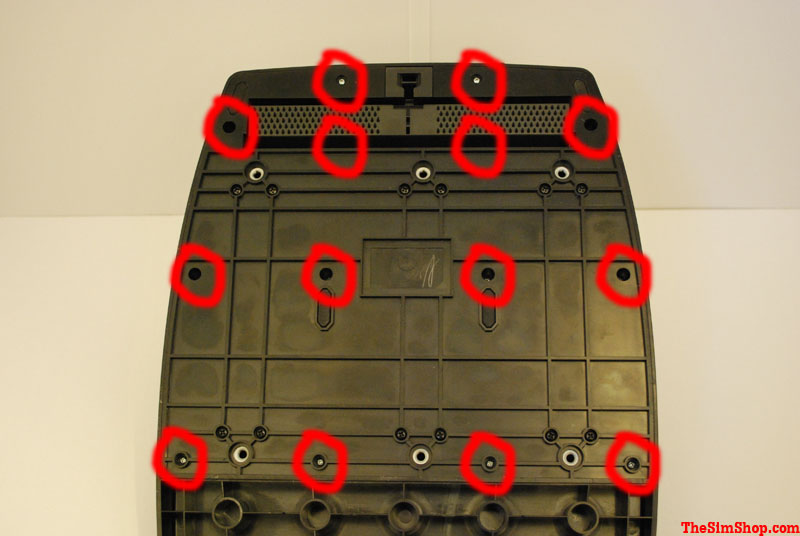

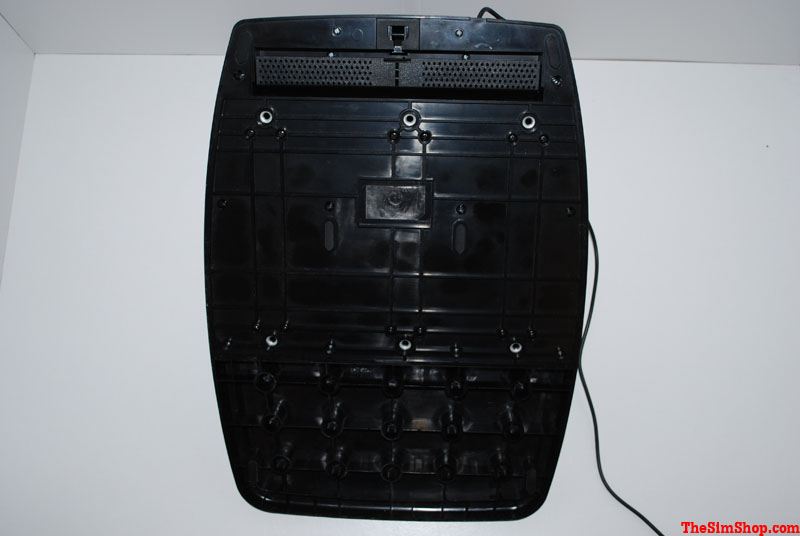

Step 3 : Undo the 14 Philips head screws from the underneath of the pedals. ( There are two hidden away under the carpet gripper )

Click to Enlarge
underneath of the pedals underneath of the pedals

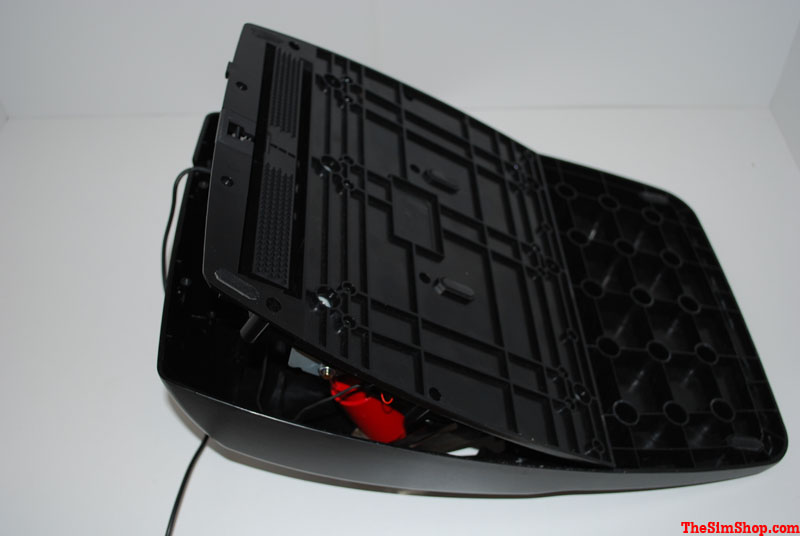

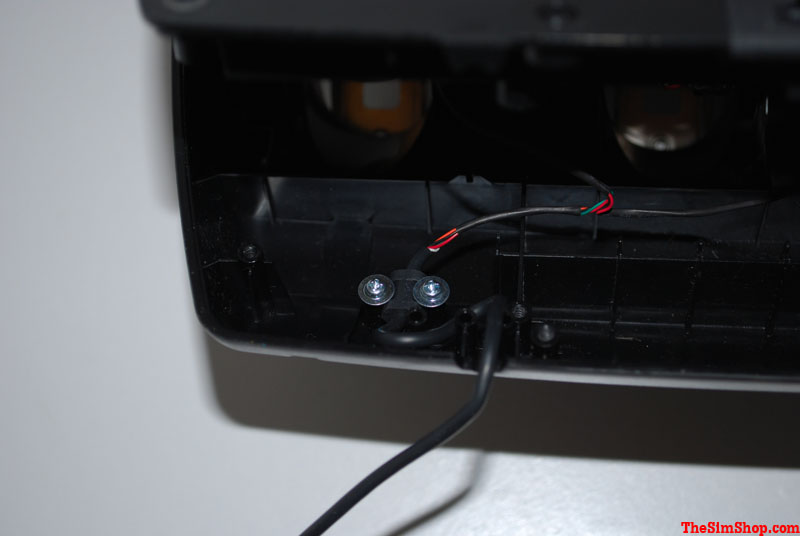

Step 4 : Carefully sperate the two half's of the pedal assembly, there are a further 2 screws holding the wire in place.

Click to Enlarge
pedal assembly pedal assembly

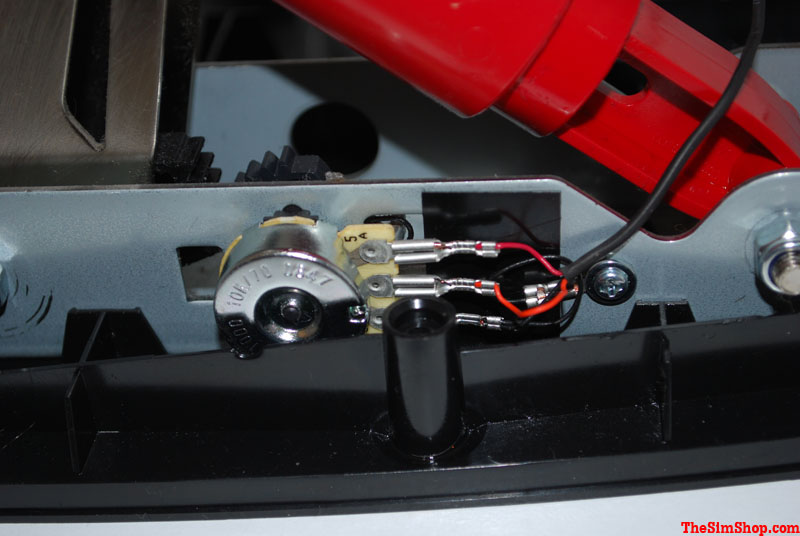

Step 5 : Disconnect the wires connected to the existing potentiometer, make a note of the order of the wires.

Click to Enlarge
Disconnect the wires

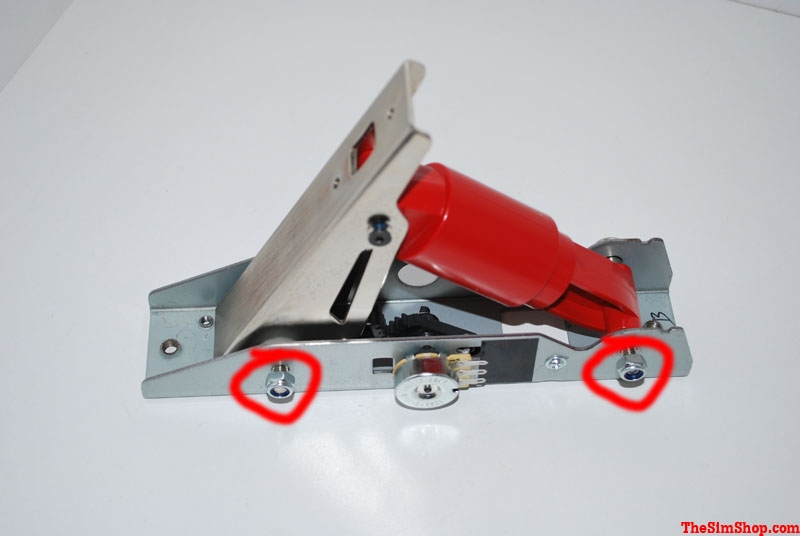

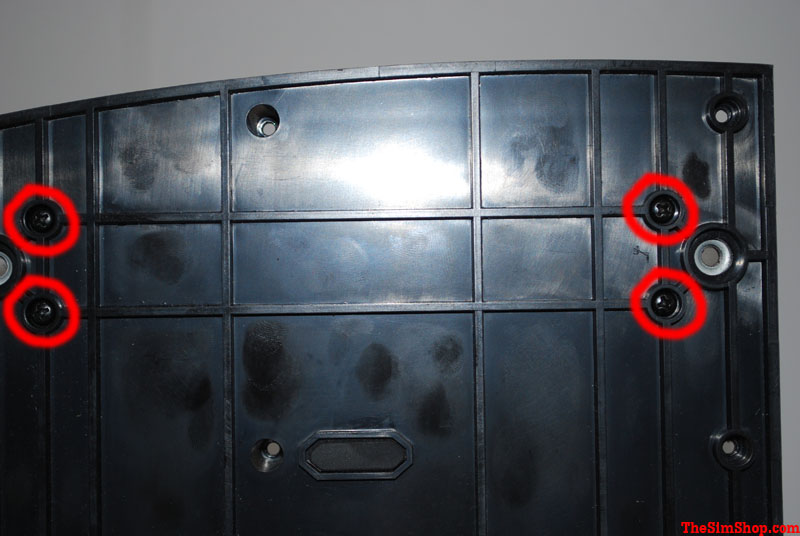

Step 6 : Undo the 4 bolts on the underside of the pedals holding the pedal assembly to the pedal base.

Click to Enlarge
pedal assembly to the pedal base

Step 7 : Undo the two bolts holding the spring and face to the assembly.

Click to Enlarge
bolts holding the spring and face to the assembly

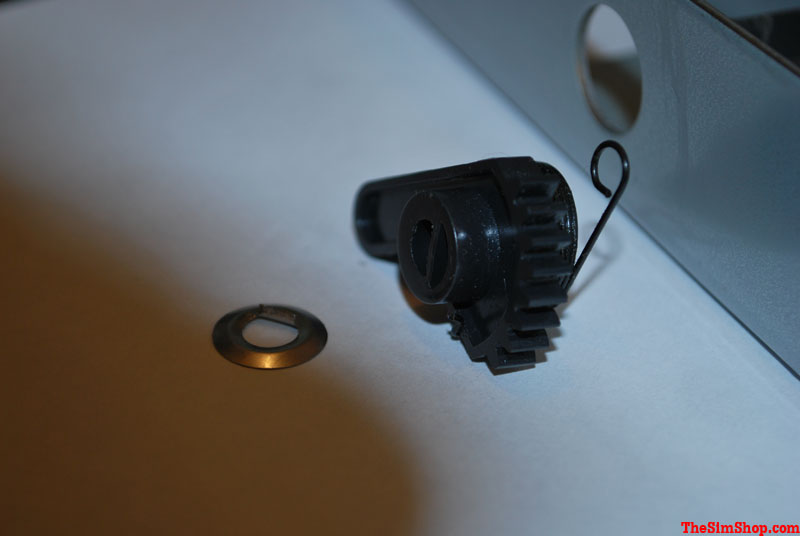

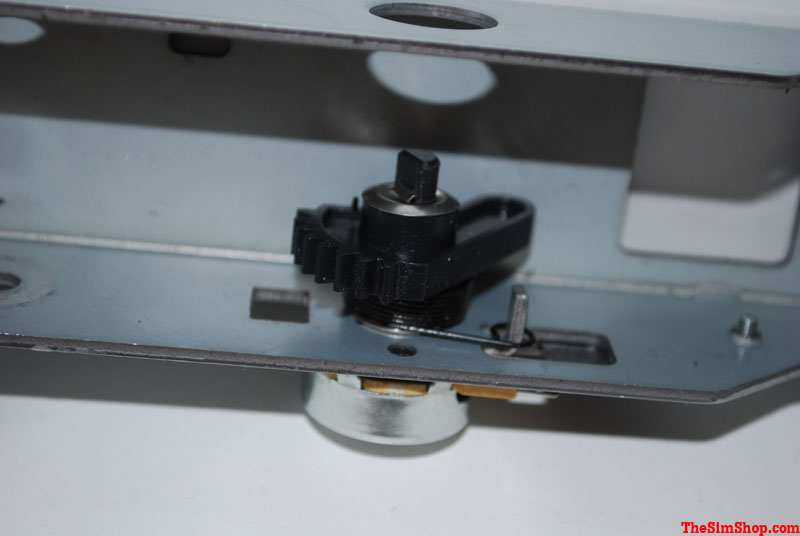

Step 8 : Remove the small clip holding the gearing in place. Tip : Use a small flat head screwdriver to bend the retaining flap up releasing the clip. Then use a pair of needle nose pliers to bend the flap back ready for the clip to be reused.

Click to Enlarge
small clip holding small clip holding

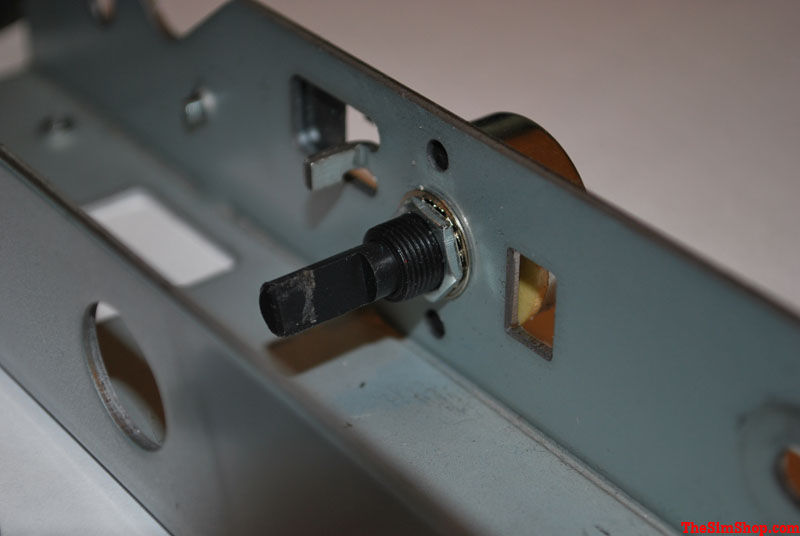

Step 9 : Undo the nut securing the potentiometer assembly in place, removing the old pot.

Click to Enlarge
securing the potentiometer securing the potentiometer

Step 10 : Refit and reassemble using the replacement potentiometers. The connectors for the potentiometers can either be pushed on or soldered on.
