How to Install Replacement Load sensors for AP electrix G25 Mod.


Warning : Disassembling your Load sensor will void any warrant with AP electrix™, this guide is provided for informational purposes only.

Step 1 : Remove the AP load sensor from your G25 pedals. You can follow our disassembly guide HERE , or use the one on AP Electrics web site.

Click to Enlarge
Remove the AP load cell

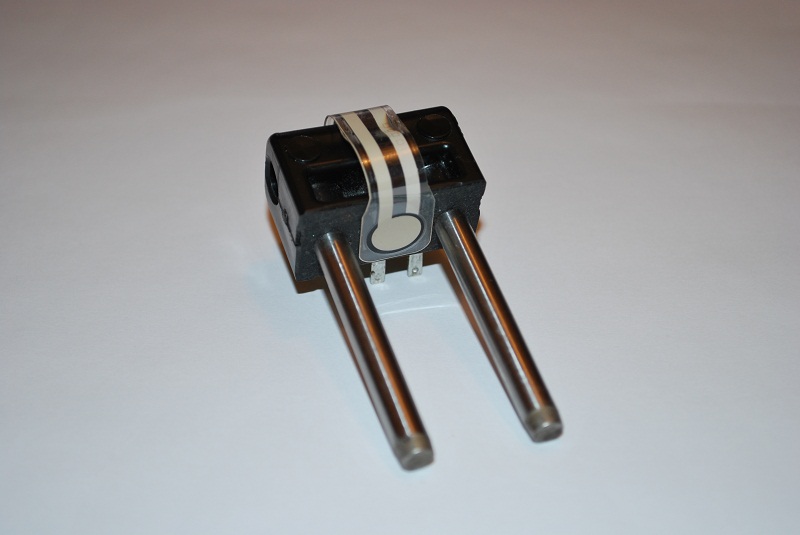

Step 2 : Separate the two halves of the sensors, it should just pull apart. Be careful as there is a strong spring acting against the two halves.

Click to Enlarge
Seperate the sensor

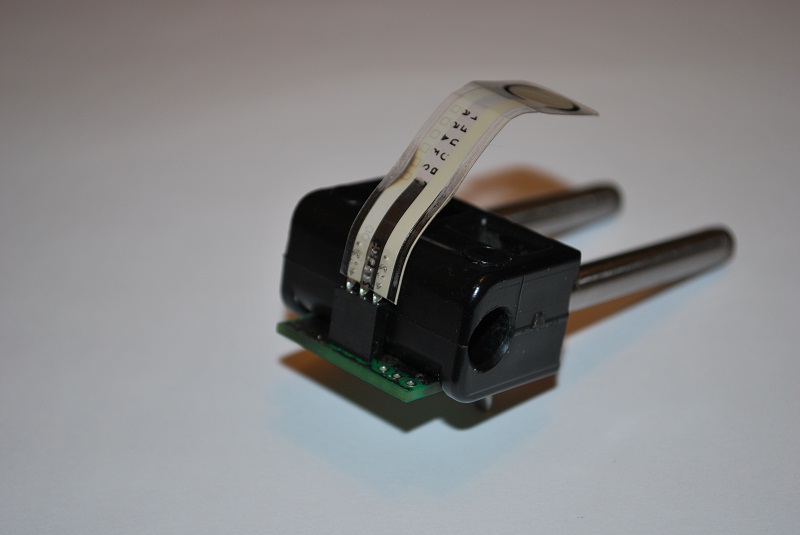

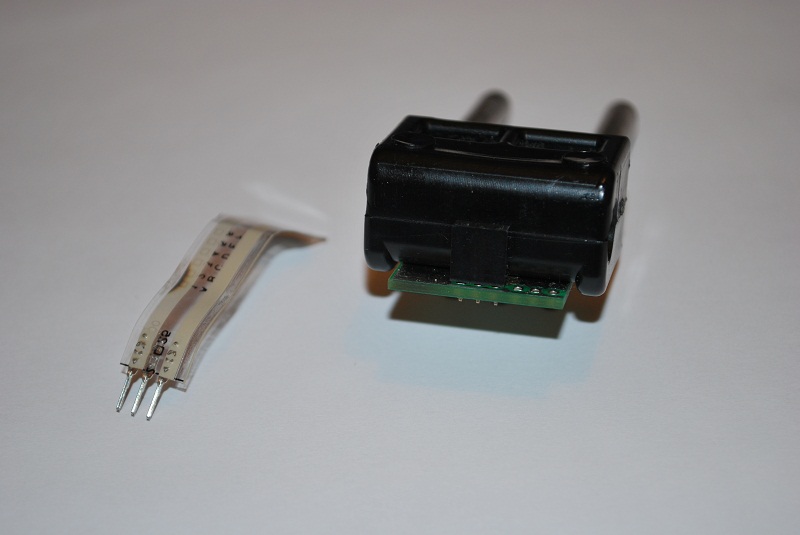

Step 3 : The sensor that needs to be replaced is the small beige foil pressure sensor. It is held in place with a small patch of double sided tape or glue, very carefully remove the sensors. Clean off any glue left behind on the black plastic.

Click to Enlarge
Seperate the sensor

Seperate the sensor

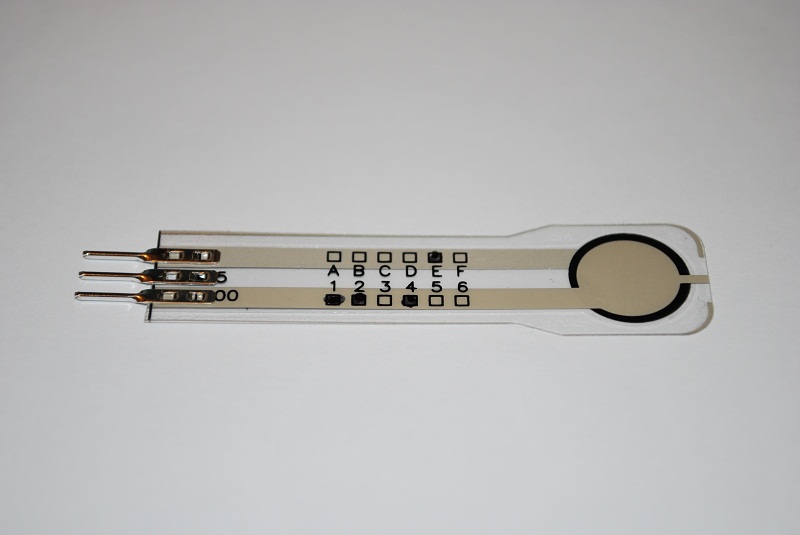

Step 4 : The sensor just pulls out of the connector and the new one just pushes in, use the suplied double sided tape to stick the sensor in place. Important : The black writting on the sensor goes face down.

Click to Enlarge
pedal assembly pedal assembly

Continue



Replacement Load sensors for AP electrix G25 Mod.
Important - You need to already own the AP Load cell mod for the G25 pedals for this sensor to work - This is not the entire assembly.


Sold Individually
Available for worldwide postage.

          Replacement Load sensors for AP electrix G25 Mod.
Category Force Sensor
Family Pressure - Linear
Resistance 10.0KΩ
Power 5 VDC
Sensing area 9.5mm
load capacity 25lbs
Package 200mm x 9mm x 0.1mm
